Troubleshooting XNAT Vagrant Installation for Windows Users

Here is a list of common (and some uncommon) issues that can get in the way of a quick and easy XNAT deployment via Vagrant in Windows.

Before You Start

1: Make sure your versions of Vagrant and VirtualBox are up to date.

As of the workshop, Vagrant should be updated to version 1.8.1, and VirtualBox should be updated to version 5.0.20 r106931.

2: Use Cygwin or Git Bash in place of the default Windows command line terminal

Important!

Make sure you are running your command line app (Cygwin, Git Bash, MobaXTerm etc) as an administrator! (See Sanket's comment thread below.)

For whatever reason, the default command line terminal in Windows does not play well with Vagrant and VirtualBox, even when run as an administrator. Fortunately, there are third party command line tools that are free to use that do. We recommend using Cygwin, which can be downloaded and installed as a stand-alone app, or Git Bash, which comes with Git (which you will need to install in just a moment here). If you want a more full-featured GUI wrapped around your command line app, you can use MobaXterm – however, there is a workaround in MobaXterm that must be followed to enable Vagrant to SSH into your VirtualBox VM.

Notes on Installing Cygwin

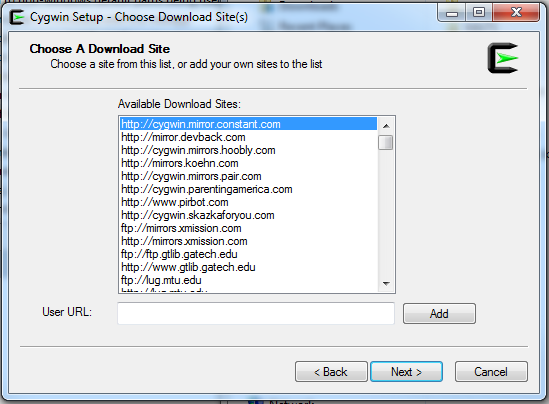

If you're using Cygwin, there are several dialogs that must be configured. Make sure your installer is set to pull down every available package. The best way to do this is to select "Install From Internet" as your installation method, then select the topmost mirror (http://cygwin.mirror.constant.com) as your download source. This should ensure that all required packages (OpenSSH in particular) are included.

When you run Cygwin, it creates a new (empty) home directory. It is simple, if a bit unintuitive, to navigate out to your file system. Enter the following to navigate to your C: drive.

USER@COMPUTERNAME ~
$ cd C:

You can also create a shortcut within Cygwin to your Repos directory by entering something like the following, substituting your actual directory path for "/path/to/your/Repos".

 $ ln -s C:/path/to/your/Repos /repos

Before You Clone The xnat-vagrant Repo

3: Download Git and use it to clone the xnat-vagrant repository instead of SourceTree or any other GUI tools

There is a '.gitattributes' file included in the xnat-vagrant repo that should force UNIX line endings. If you would prefer to set this globally for all Git repos, during installation of Git, select the option to "Checkout as-is, commit Unix-style Line Endings."

You can download Git here: https://git-scm.com/downloads

Downloading Git directly and using it to clone repos from Github will help you get around pernicious differences between Unix-style and Windows-style line-endings in code. This is particularly bad in code that is downloaded to a Windows machine, but is meant to be run inside of a Linux VM.

SourceTree can be particularly troublesome, as it comes with its own pre-downloaded and pre-configured version of Git, and its default configuration gets these line-endings wrong. If you start seeing problems when running "setup.sh" that look like the following, then you need to convert the line endings of affected files (Notepad++ can do this easily), or you can delete your repo and re-clone it (make sure you back up any local configuration files first).

 $ sh setup.sh
setup.sh: line 2: $'\r': command not found
setup.sh: line 4: $'\r': command not found
setup.sh: line 6: $'\r': command not found
setup.sh: line 36: syntax error: unexpected end of file

Cloning the xnat-vagrant repo with git is simple. Open Cygwin and navigate to your repos directory, then run the following command. The process should take just a few seconds.

USER@COMPUTERNAME /repos
$ git clone https://github.com/NrgXnat/xnat-vagrant.git

Before You Run setup.sh

4: Make sure your vagrant xnatstack box is up-to-date

First, you'll need to navigate to one of the configuration directories in your newly-downloaded repo. ( xnat-vagrant/configs/xnat is the default.) Then, you'll run the following command:

USER@COMPUTERNAME /repos/xnat-vagrant/configs/xnat
$ vagrant box add nrgxnat/xnatstack-ubuntu1404-docker --provider virtualbox

If you get an error because you already have a previous version of the xnatstack box installed, you can update it with the following command.

USER@COMPUTERNAME /repos/xnat-vagrant/configs/xnat
$ vagrant box update --box nrgxnat/xnatstack-ubuntu1404-docker

We will be distributing the most up-to-date xnatstack box on a USB drive at the start of the workshop, if you are unable to download and update this rather large file before you arrive.

Okay, Try It Now!

From this same config folder, run the setup.sh script in your xterminal. Then sit back and have a nice cup of coffee for the next five minutes or so as your XNAT builds for you.

USER@COMPUTERNAME /repos/xnat-vagrant/configs/xnat
$ sh setup.sh

Other Uncommon Issues

Do you need to allow virtualization in BIOS?

In some Windows machines with Intel processors, virtualization may be turned off by default. This can be changed in BIOS. Here's a quick tutorial: http://www.howtogeek.com/213795/how-to-enable-intel-vt-x-in-your-computers-bios-or-uefi-firmware/

Do you have conflicting versions of Java installed?

Although Java is not required to run XNAT in a Vagrant VM, if you wish to do XNAT development or perform your own builds on your local desktop, you'll need the Java 8 JDK, and a text editor or IDE like IntelliJ IDEA (recommended) or Eclipse.

Do you have Windows firewall enabled?

You may have trouble getting your vagrant box to run if you have the Windows firewall enabled.  To disable:  http://windows.microsoft.com/en-us/windows/turn-windows-firewall-on-off#turn-windows-firewall-on-off=windows-7.

Hey! My terminal is telling me it can't find vagrant, even though I installed it earlier. What gives?

You will need to add vagrant to your path in order to use it. For either MobaXterm, or Cygwin, you will need to add the vagrant installation location to your path and source your .bashrc file to get it to take effect. You can do this as follows:

echo 'export PATH=$PATH:/drives/c/HashiCorp/Vagrant/bin' >> ~/.bashrc
source ~/.bashrc

...or...

echo 'export PATH=$PATH:/cygdrive/c/HashiCorp/Vagrant/bin' >> ~/.bashrc
source ~/.bashrc

Alternatively, you can simply restart your terminal instead of running the second lines above.
